Recommended Label Settings for Robot Collection

The following settings are recommended for labelling items for Robot Collection:

Label Printer Settings

Please see below for the recommended Printer Details settings in Pharmacy Manager:

  1. From the Pharmacy Manager Toolbar, select Tools - System Settings - Printer Configuration - Pharmacy Manager.

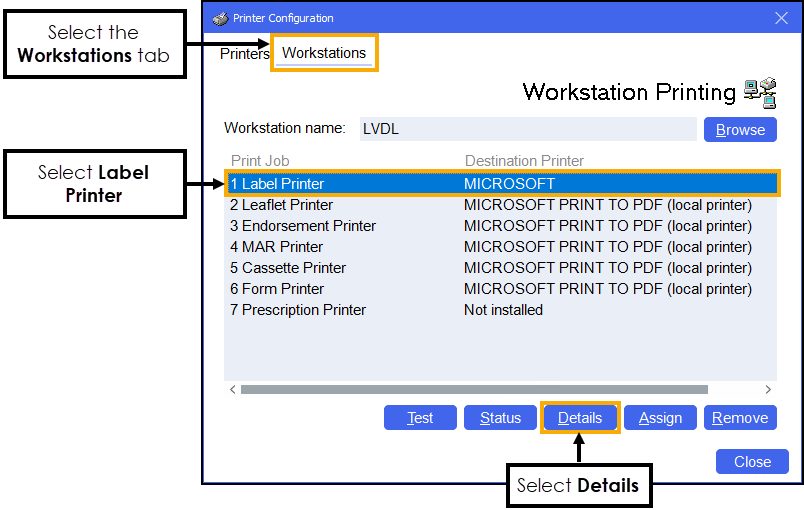

  2. Select the Workstations tab and select the Label Printer:

  3. Select Details .

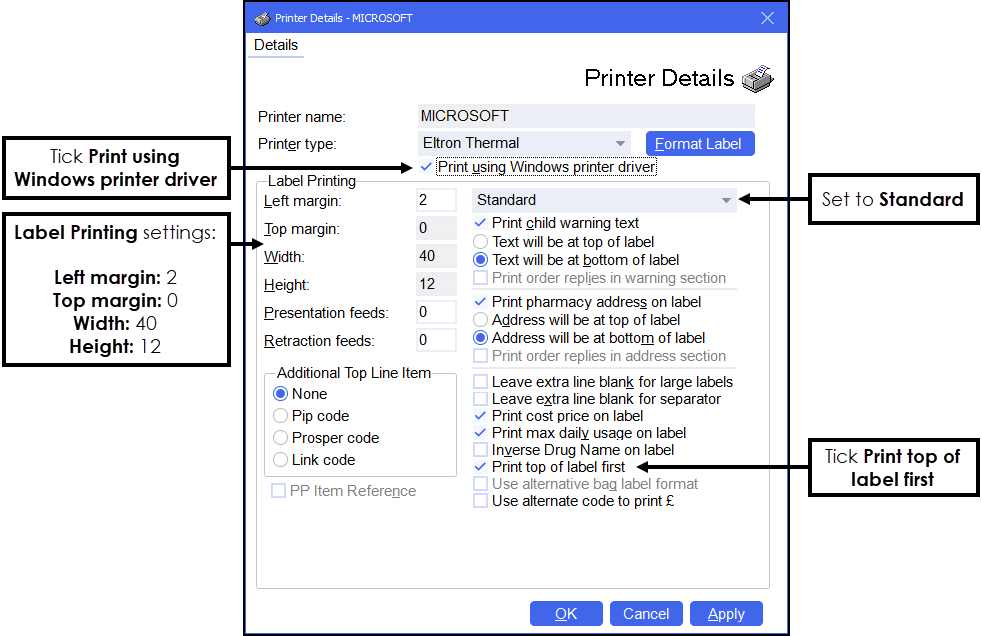

  4. The Printer Details screen displays for the selected Label Printer, see the recommended settings below:

    • Print using Windows printer driver - Tick

    • Set the drop-down to Standard

    • Label Printing:

      • Left margin - 2

      • Top margin - 0

      • Width - 40

      • Height - 12

    • Print top of label first - Tick

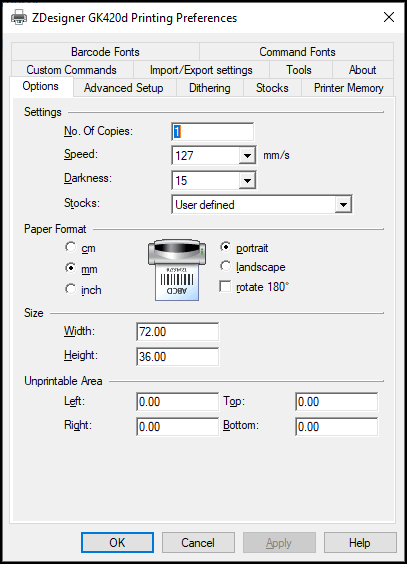

ZDesigner GK420d Printer Preferences

Please see below for the recommended label settings for the ZDesigner GK420d printer:

  • Size:

    • Width - 72.00 mm

    • Height - 36.00 mm

  • Unprintable Area:

    • Top - No more than 6.00 mm

    • Bottom - No more than 6.00 mm
